| MODELO | FORMATO MÓDULO |
DIMENSÕES CxL |
TAMANHO CARACTERE |
TAMANHO PONTO |
CONTROLADORA | PASSO PONTO |
BACKLIGHT | COR FUNDO |
DATASHEET | |
|---|---|---|---|---|---|---|---|---|---|---|
|

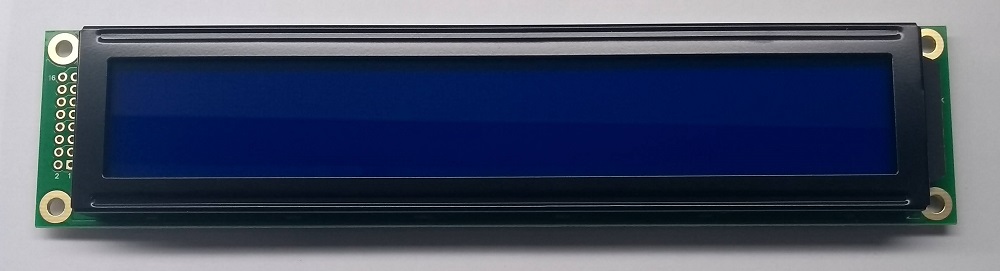

AGM 2002G-801 | 20*2 | 180.0*40.0 | 6.00*9.66 | 1.12*1.12 | ST7066U | 1.22*1.22 | LED Branco | ||
|

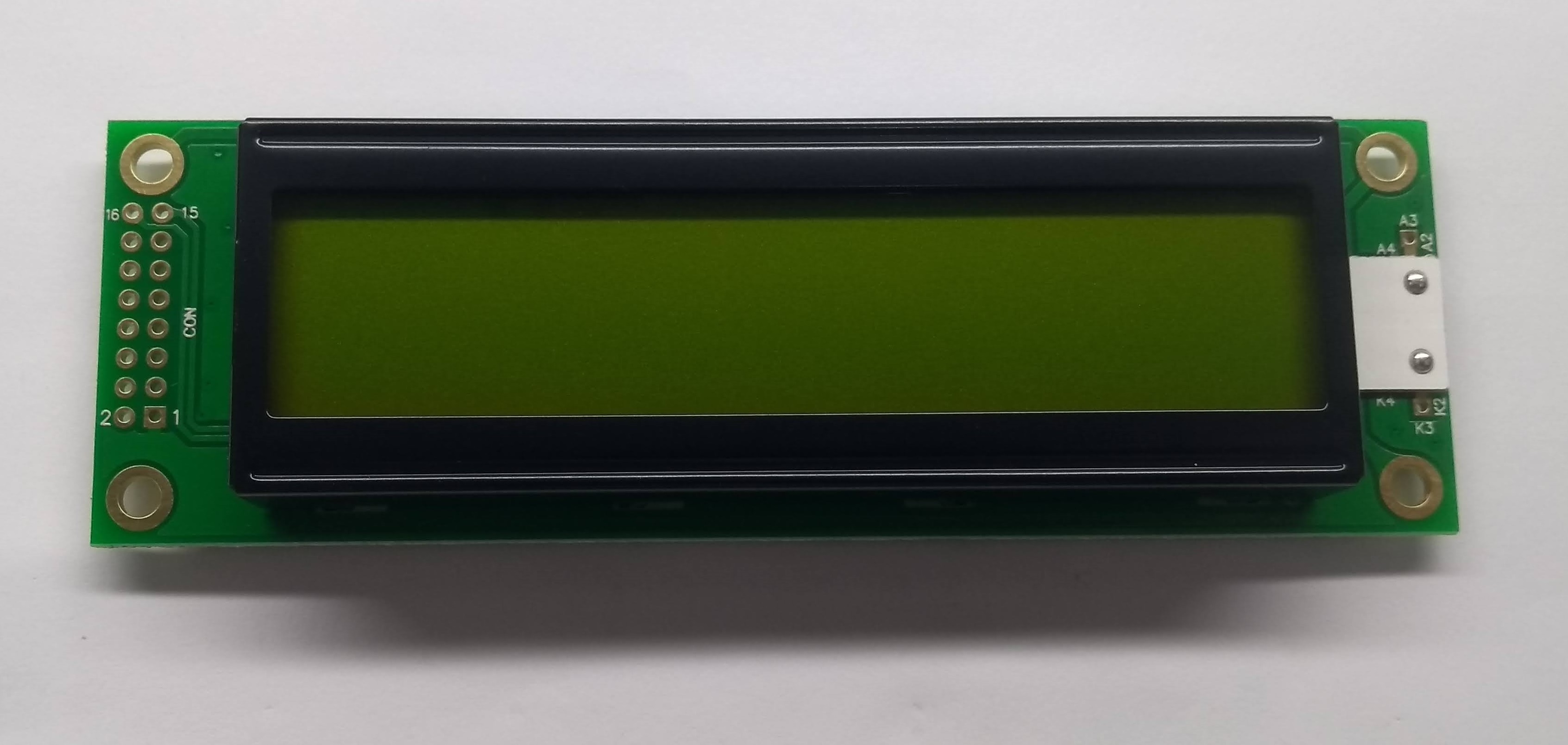

AGM 2002A-206 | 20*2 | 116.0*37.0 | 3.20*5.55 | 0.60*0.65 | ST7066U | 0.65*0.70 | LED Yellow-Green | ||
|

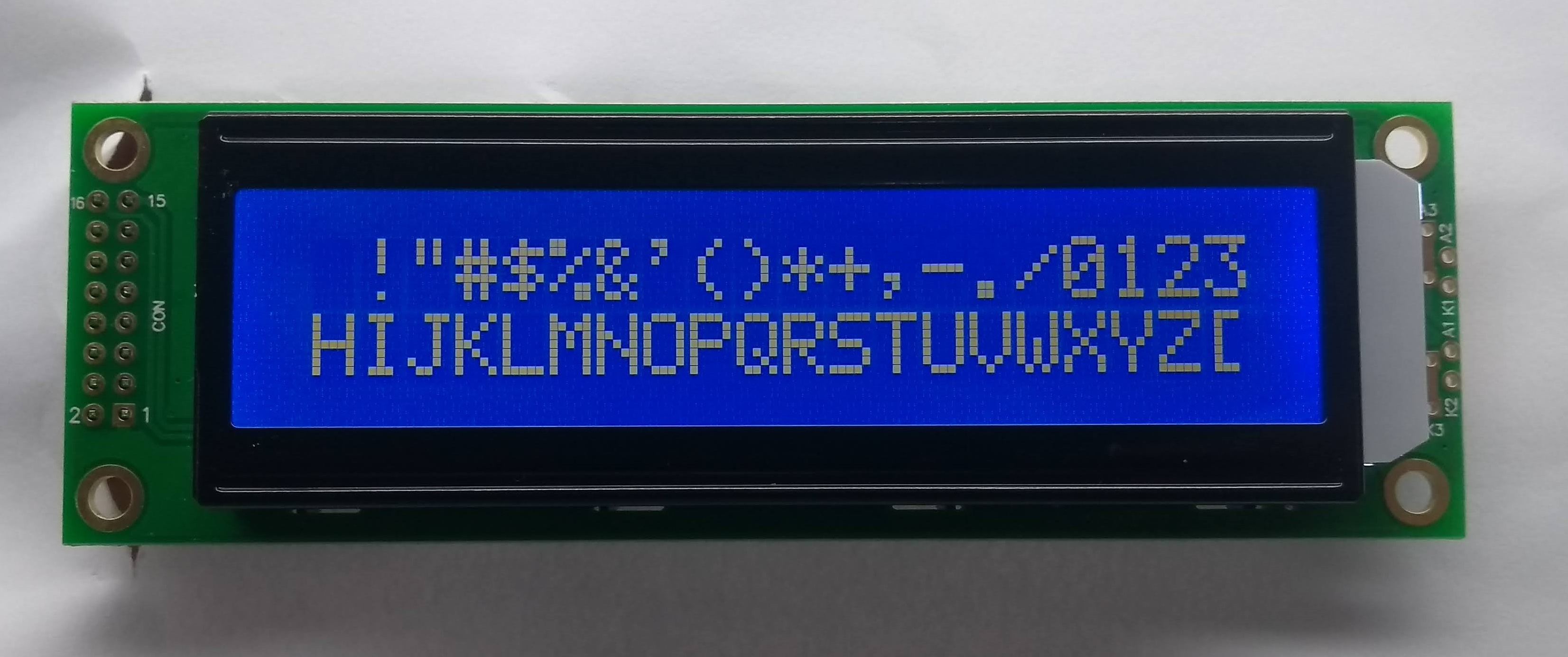

AGM 2002A-804 | 20*2 | 116.0*37.0 | 3.20*5.55 | 0.60*0.65 | ST7066U | 0.65*0.70 | LED Branco | ||
|

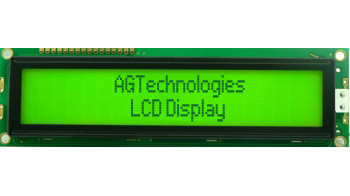

AGM 2002F-201 | 20*2 | 146.0*43.0 | 4.84*9.22 | 0.92*1.10 | ST7066U | 0.98*1.16 | LED Yellow-Green | ||
|

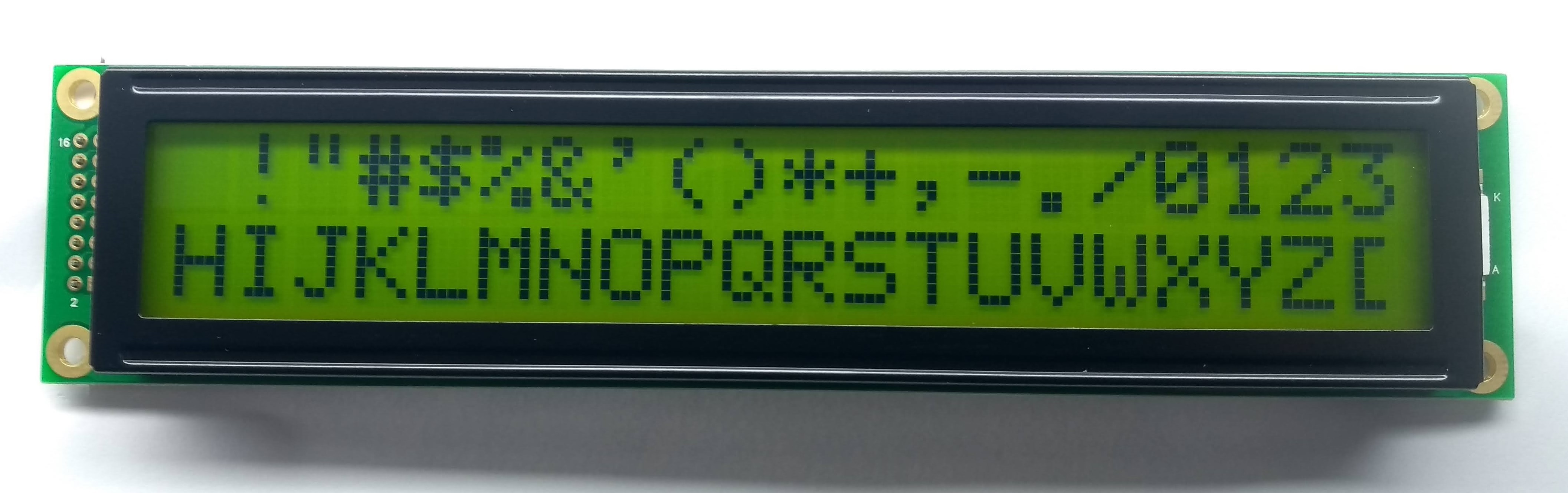

AGM 2002G-206 | 20*2 | 180.0*40.0 | 6.00*9.66 | 1.12*1.12 | 1.22*1.22 | LED Yellow-Green |
